Casero Mode

Ushering a leading, tried and tested Floorline bed into Modern elegance, with the Platinum Homecare Range combined to create the first designer styled floorline bed available.

Pull apart design further develops this useable bed for tight homecare spaces, and make it the first designer styled pull apart floorline bed, ideal for in home care.

Clear
Print Quick Enquiry
  • Floorline Bed, 110mm low height
    Bed Dismantles into 2 sections for easy transportation into a home
    or hard to access areas.
  • Auto Regression Backrest, creates 12cm of additional sacral
    area space which helps to reduce sacral pressure, shear force
    throughout the back and abdominal compression during bed
    profiling

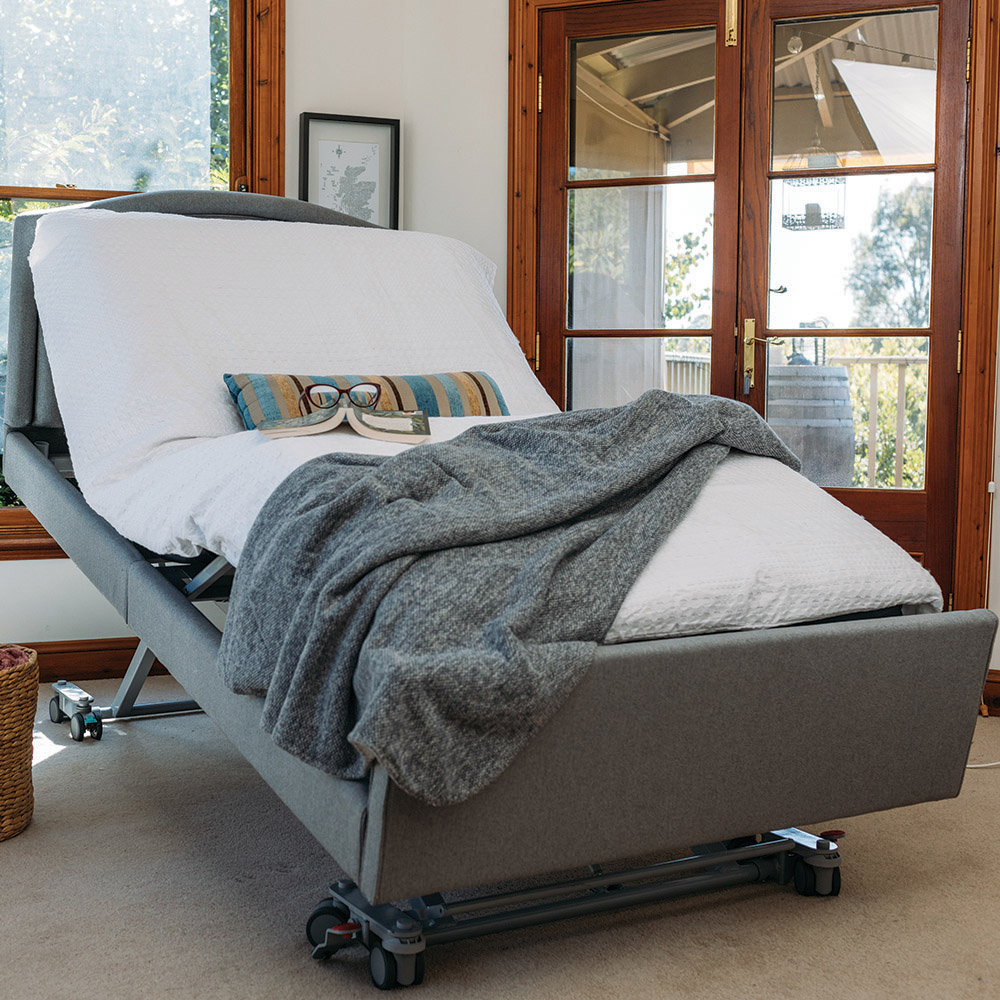

  • One Touch Seating Function, for improved respiration and pressure
    management, allowing for a more comfortable position for dining
    and conversations.
  • One Touch exit function, moves the bed to a flat position at the
    optimal height for resident egress and exit

Warranties

  • 10 Year frame warranty
  • 5 year electrics warranty
  • 12 month hand control warranty
Specification Single (BD6200) King Single (BD6300)
Patient Surface Width 900mm 1070mm
Patient Surface Length 2000mm | 2200mm 2000mm | 2200mm
Length Extension 2000mm 2000mm
Overall Width (includes side surround) 1020mm 1190mm
Overall Length (includes Head and Foot boards) 2170mm | 2370mm 2170mm | 2370mm
Low Height 110mm 110mm
High Height 740mm 740mm
Safe Working Load 200kg 200kg
Backrest Range 0-70 Degrees 0-70 Degrees
Knee Bend Range 0-36 Degrees 0-36 Degrees
Trendelenburg Range +-12 Degrees +-12 Degrees
Backrest length 880mm 880mm
Fixed section(auto-regression back up/down) 310mm(up) 180mm(down) 310mm(up) 180mm(down)
Upper leg Section 330mm 330mm
Lower leg Section 530mm(standard) 730mm(extended) 530mm(standard) 730mm(extended)
Casero Bed Range Brochure
  • Floorline Bed, 110mm low height
    Bed Dismantles into 2 sections for easy transportation into a home
    or hard to access areas.
  • Auto Regression Backrest, creates 12cm of additional sacral
    area space which helps to reduce sacral pressure, shear force
    throughout the back and abdominal compression during bed
    profiling
  • One Touch Seating Function, for improved respiration and pressure
    management, allowing for a more comfortable position for dining
    and conversations.
  • One Touch exit function, moves the bed to a flat position at the
    optimal height for resident egress and exit

Warranties

  • 10 Year frame warranty
  • 5 year electrics warranty
  • 12 month hand control warranty
Specification Single (BD6200) King Single (BD6300)
Patient Surface Width 900mm 1070mm
Patient Surface Length 2000mm | 2200mm 2000mm | 2200mm
Length Extension 2000mm 2000mm
Overall Width (includes side surround) 1020mm 1190mm
Overall Length (includes Head and Foot boards) 2170mm | 2370mm 2170mm | 2370mm
Low Height 110mm 110mm
High Height 740mm 740mm
Safe Working Load 200kg 200kg
Backrest Range 0-70 Degrees 0-70 Degrees
Knee Bend Range 0-36 Degrees 0-36 Degrees
Trendelenburg Range +-12 Degrees +-12 Degrees
Backrest length 880mm 880mm
Fixed section(auto-regression back up/down) 310mm(up) 180mm(down) 310mm(up) 180mm(down)
Upper leg Section 330mm 330mm
Lower leg Section 530mm(standard) 730mm(extended) 530mm(standard) 730mm(extended)
