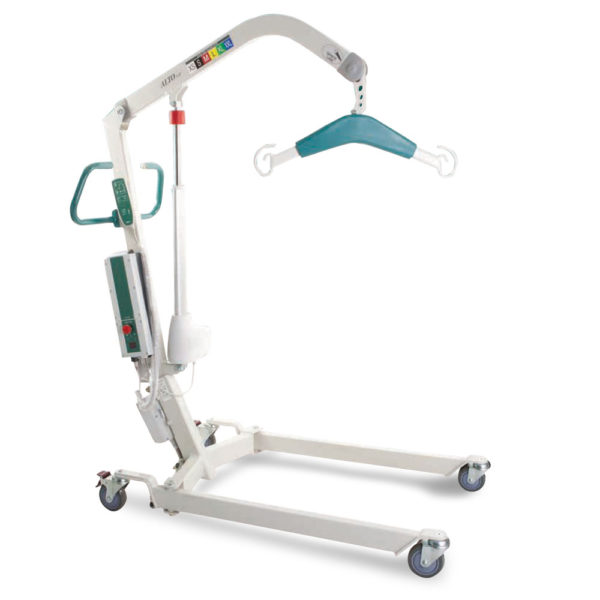

Allegro Alto

Code: LA0010
Print Quick Enquiry
  • Compact medium sized heavy duty mobile patient lifting hoist
  • Innovative and ergonomic
  • Designed primarily for institutional use or home care situations where a high capacity lift is required
  • Electric base width adjustment
  • Provides superior patient space through the use of Space Link technology
  • The unique feature of Space Link allows a patient to be rotated through 360 degrees at full lift height, making the carer’s job easier and safer
  • Offers more patient space than most other larger size lifters
  • Tested and complies to Australian Standards AS ISO 10535-2002
Base Length 1150mm
External Base Width Closed 700mm
External Base Width Opened 1130mm
Internal Base Width Closed 600mm
Internal Base Width Open 1030mm
Under Bed Clearance 130mm
Minimum Height Yoke 300mm
Maximum Height Yoke 1920mm
Under Base Height 55mm
Maximum Hoist Reach 1060mm
Minimum Hoist Reach 610mm
Hoist Reach at Maximum Height 515mm
Lifter Weight 46kg
Minimum Storage Height 1350mm
Safe Working Load 200kg
