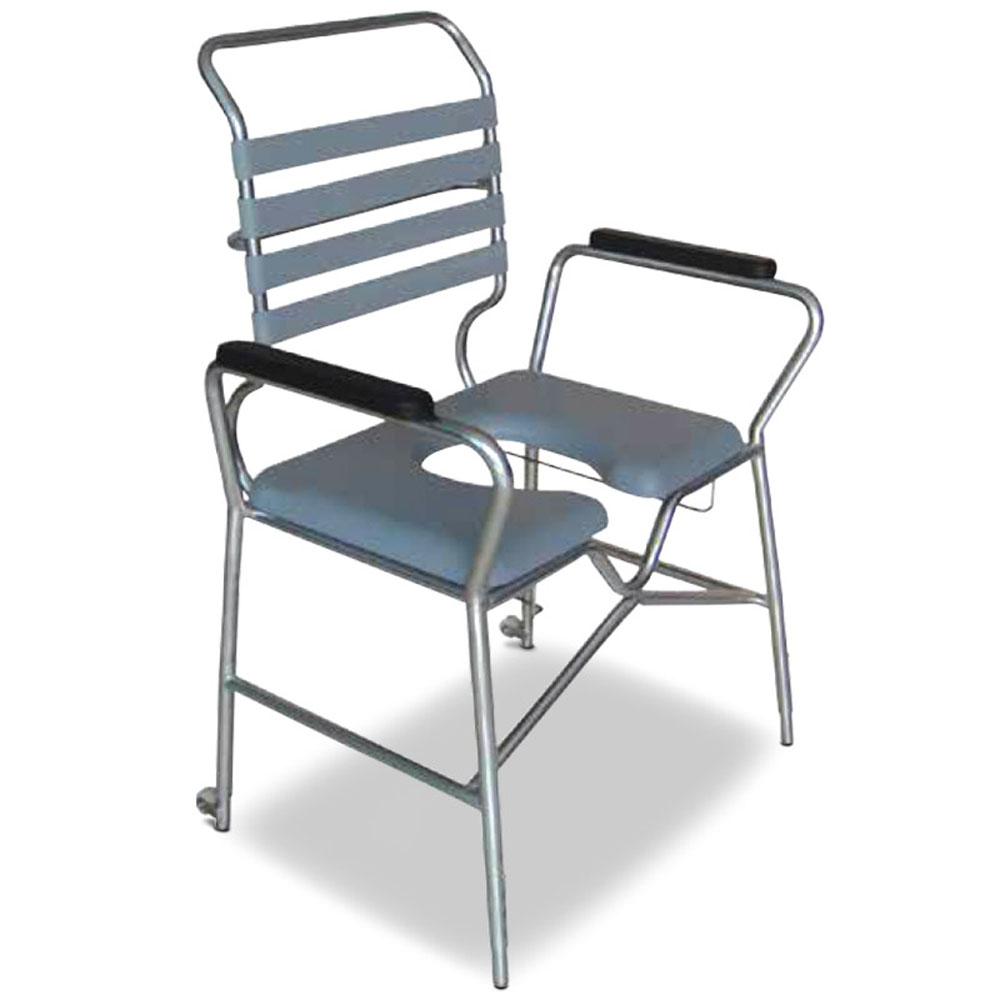

Trix Shower Chair

Clear
Print Quick Enquiry
  • Assists patient with showering and toileting
  • Clear rear open space enabling positioning over the toilet
  • Easy access for hygiene with open armrest design
  • Internal pan carrier glides
  • Removable backrest
Code AJ0390 AJ0400 AJ0410
Arm Rest Height 210mm 210mm 210mm
Back Rest Height 430mm 430mm 430mm
Overall Height 920-1100mm 920-1100mm 920-1100mm
Overall Width 780mm 880mm 1080mm
Seat Depth – 5 settings at 25mm increments 470-570mm 470-570mm 495-595mm
Seat Depth – 7 settings at 25mm increments 410-560mm 410-560mm 410-560mm
Seat Width 610mm 710mm 910mm
Width Between Arms 660mm 760mm 960mm
Max User Weight 400kg 400kg 400kg
Overall Depth 650-750mm  650-750mm 710-810mm
Wall to Rear of Aperture 240-340mm 240-340mm 240-340mm
Toilet Bowl Clearance: Max Width x Height 540mm (w) x 500mm (h) 640mm (w) x 500mm (h) 840mm (w) x 500mm (h)
Toilet Bowl Clearance: To Underside of Pan Carrier 540mm (w) x 480mm (h) 640mm (w) x 480mm (h) 840mm (w) x 480mm (h)
